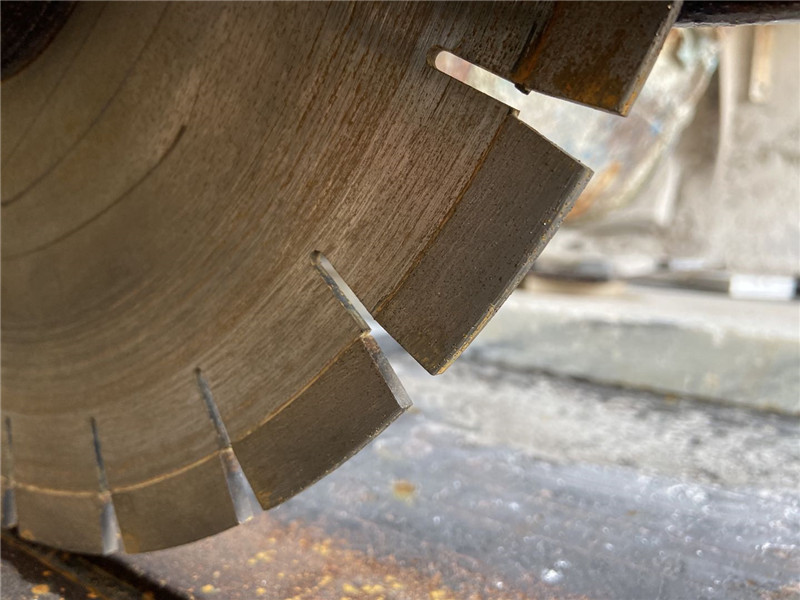

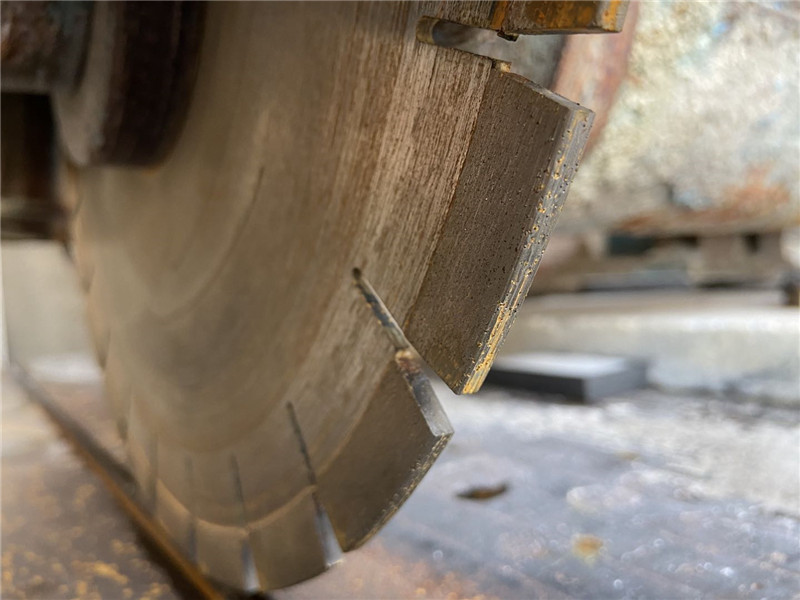

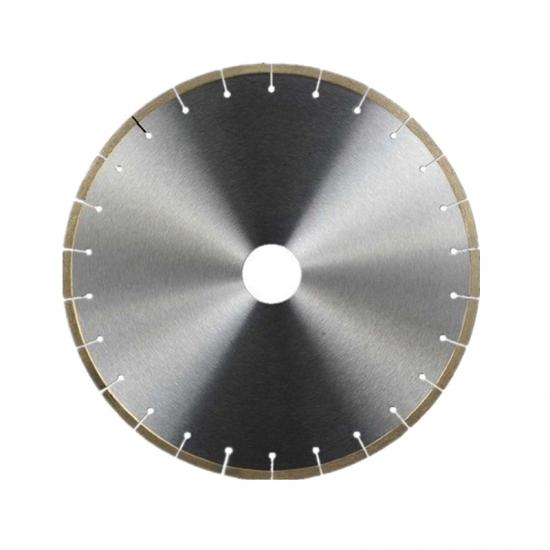

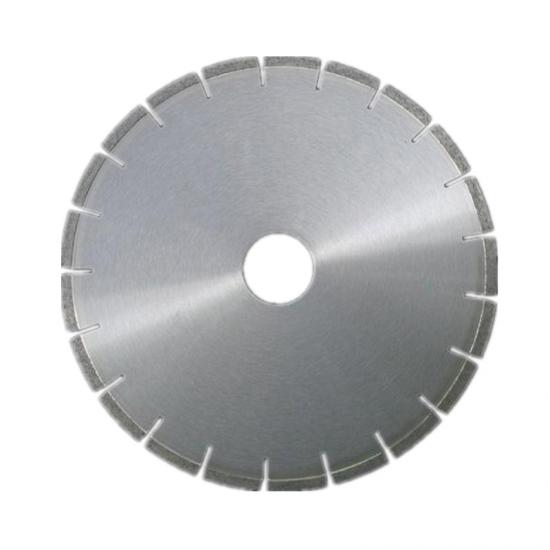

MARBLE CUTTING DIAMOND SAW BLADE
DESCRIPTION:
JINSHAN can produce marble saw blade form sizes dia.250mm to dia.2000mm with different formulas for different hardness of stones. Silent type and non-silent type can be provided upon customers’ request. Also the diamond segments can be provided separately.
SPECIFICATIONS:
| DIAMETER | SIZE OF SEGMENT | NO. OF SEGMENT | THICKNESS OF CORE |
| 250mm | 35x3.2x8mm | 20 | 2.2 |
| 300mm | 40x3.2x8mm | 21 | 2.2 |
| 350mm |
40x3.2x8mm |
25 | 2.2 |
| 400mm |
40x3.6x8mm |
29 | 2.6 |
| 450mm |
40x3.8x8mm |
32 | 2.8 |
| 500mm |
40x4.0x8mm |
36 | 3.0 |
| 550mm |
40x4.2x8mm |
40 | 3.2 |
| 600mm |
40x4.6x8mm |
42 | 3.6 |
| 650mm |
40x4.6x8mm |
46 | 3.6 |
| 700mm |
40x5.0x8mm |
50 | 4.0 |
| 800mm |
40x5.5x8mm |
46 | 4.5 |
| 850mm |
40x6.0x8mm |
48 |
5.0 |
| 900mm |
40x6.0x8mm |
55 |
5.0 |
| 1000mm | 24x7.5x10mm | 70 | 5.5 |
| 1200mm |
24x8.0x10mm |
80 | 6.0 |
| 1600mm |
24x10x10mm |
108 | 7.2 |
| 1800mm |
24x10.5x10mm |
120 | 8.0 |
| 2000mm | 24x12x10mm | 120 | 9.0 |
Blade Material: Tungsten Carbide Steel Diamond
Usage: wet cutting
Type: circular saw blade
Machine: bridge cutting machine, edge cutting machine
Inner Hole: 25.4/50/60mm
Application: for cutting marble
PACKING DETAILS:
The blades are packed with wooden cases, the cases are made according to the blade quantity while normally it packs less than 10pcs in one case to prevent overweight packing.
FEATURES:
1.Many size of diamond circular saw blade can be offered.
2.Different formulas for different markets.
3.Different formulas for different hardness of stones.
4.Diamond segments can be offered separately.
